MEGANT

Pre-engineered Connection System
  • Code Approval
  • ETA
  • Connection Type
  • Wood/Wood
  • Applications
  • Mass & Heavy Timber Construction
  • Manufacturer
  • KNAPP

Request a Quote Tech. Support

Pre-Installable

Installable From All Directions

Fully Concealable

1hr FRR Test Report

Product Description

Product Description

The MEGANT beam hanger systems are pre-engineered, high-capacity post-to-beam connections manufactured from aluminum. They allow mass timber member installation from all directions (top, bottom & sides) due to their composition;

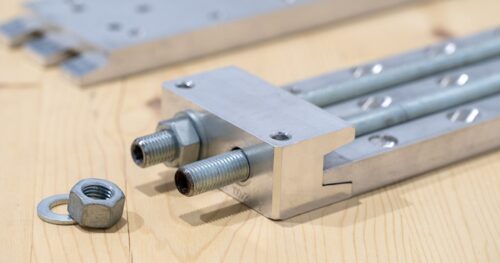

Two connector plates, two clamping jaws (one threaded / one unthreaded), and up to three threaded rods, washers, & nuts that will tighten the assembly together once in place (from top down or bottom up). They are fully concealable, providing adequate fire resistance rating, and are ideal for a serial preinstallation in a shop controlled environment.



Features

  • Off-the-shelf high-capacity system
  • Aluminum material
  • Specialized for mass timber projects
  • Various housing possibilities
  • Allow post-to-beam assembly from all directions (top, bottom & sides)
  • Easily replicable installation
  • Fully concealable for fire resistance rating
  • Installed with ICC code-approved fasteners
  • Can be used in single or double configuration to increase the supported capacity [Contact our technical support team in the second scenario]



They are using a combination of  45° & 90° angled, fully threaded ASSY VG CSK 5/16” x 6-1/4” [8 x 160mm] screws. These fasteners are ICC-ESR approved in the United States and accredited by a Canadian Construction Materials Centre Reports (CCMC) approval in Canada. Using a  Pre-Drilling Jig accelerates the process even further and reduces the overall connections’ cost, but it will also ensure a successful and uniform installation.

Specifications

Specifications

SpecificationMEGANTCapacity Up To [Standard Term Loading]
# ItemMaterial / CoatingFastenersin.mmKips (ASD)kN (LSD)
MEGANT 310 x 60AluminiumVG CSK13 3/8 x 2 3/8310 x 608.2060
MEGANT 430 x 60AluminiumVG CSK18 1/4 x 2 3/8430 x 6012.8094
MEGANT 550 x 60AluminiumVG CSK22 7/8 x 2 3/8550 x 6012.80125
MEGANT 310 x 100AluminiumVG CSK13 3/8 x 4310 x 10010.5077
MEGANT 430 x 100AluminiumVG CSK18 1/4 x 4430 x 10017.50128
MEGANT 550 x 100AluminiumVG CSK22 7/8 x 4550 x 10019.50166
MEGANT 310 x 150AluminiumVG CSK13 3/8 x 6310 x 15013.60100
MEGANT 430 x 150AluminiumVG CSK18 1/4 x 6430 x 15022.70166
MEGANT 550 x 150AluminiumVG CSK22 7/8 x 6550 x 15031.80232
MEGANT 730 x 150AluminiumVG CSK30 x 6750 x 15032.60318
CAD Drawings

2D & 3D Geometry

ProductFile Extension
.DXF .DWG.IFC.STEP.RFA
MEGANT 310 x 60
MEGANT 430 x 60
MEGANT 550 x 60
MEGANT 310 x 100
MEGANT 430 x 100
MEGANT 550 x 100
MEGANT 310 x 150
MEGANT 430 x 150
MEGANT 550 x 150
MEGANT 730 x 150
ALL ABOVE
Design Guides

Design Guides

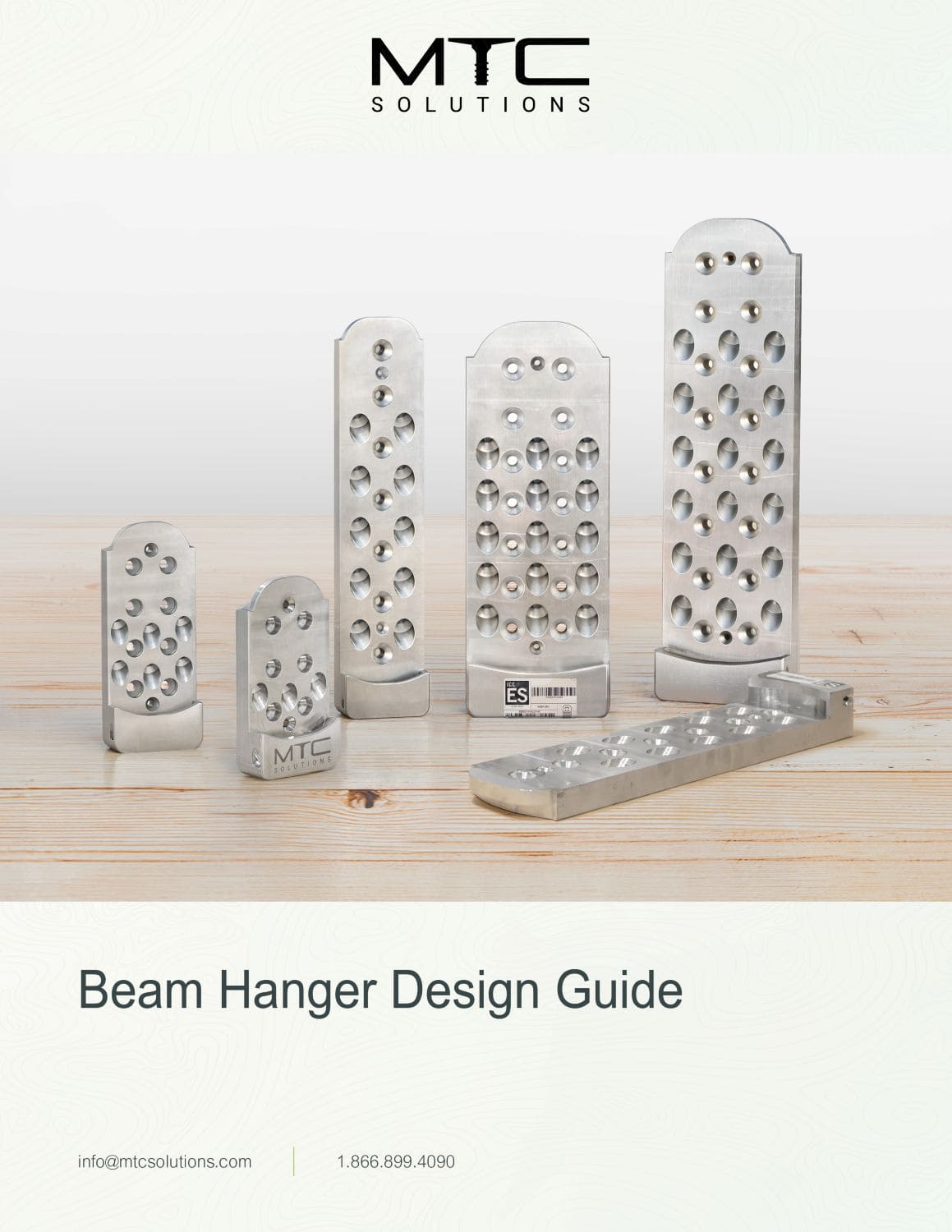

Beam Hangers Design Guide

A detailed selection tool ideal to design post and beam mass timber structures, providing out-of-the-shelves pre-engineered beam hanger solutions.

Installation Instructions

Installation Instructions

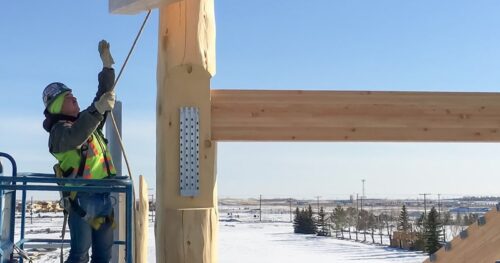

Beam Hanger System MEGANT Tutorial

Learn how to install MTC’s Beam Hangers MEGANT, a perfect pe-engineered connection to achieve post to beam connections.

White Papers

White Papers

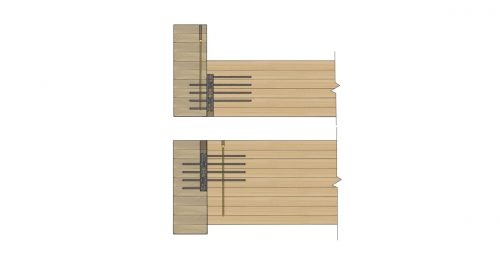

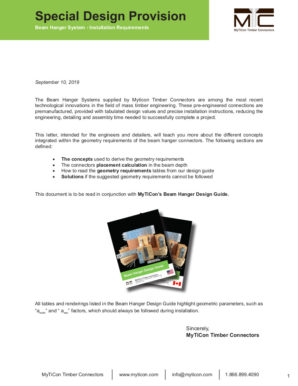

Practical Considerations for the Detailing of Beam Hangers

Standard Bay Fire Design

Mass Timber Connections Beam Hanger Selection Charts

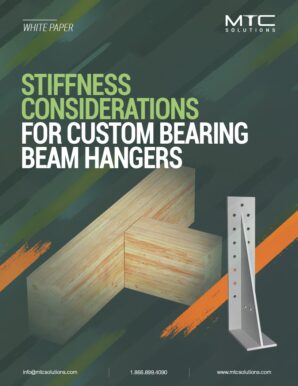

Stiffness Considerations for Custom Bearing Beam Hangers

Fire Design for Mass Timber Connections
