ASSY Kombi 4.0

Hexagonal Head Partially Threaded Structural Wood Screws, 4.0
  • Code Approval
  • ICC , ETA
  • Connection Type
  • Wood/Steel
  • Applications
  • Timber Framing, Log Home Building, Mass & Heavy Timber Construction
  • Manufacturer
  • SWG

Request A Quote Tech. Support

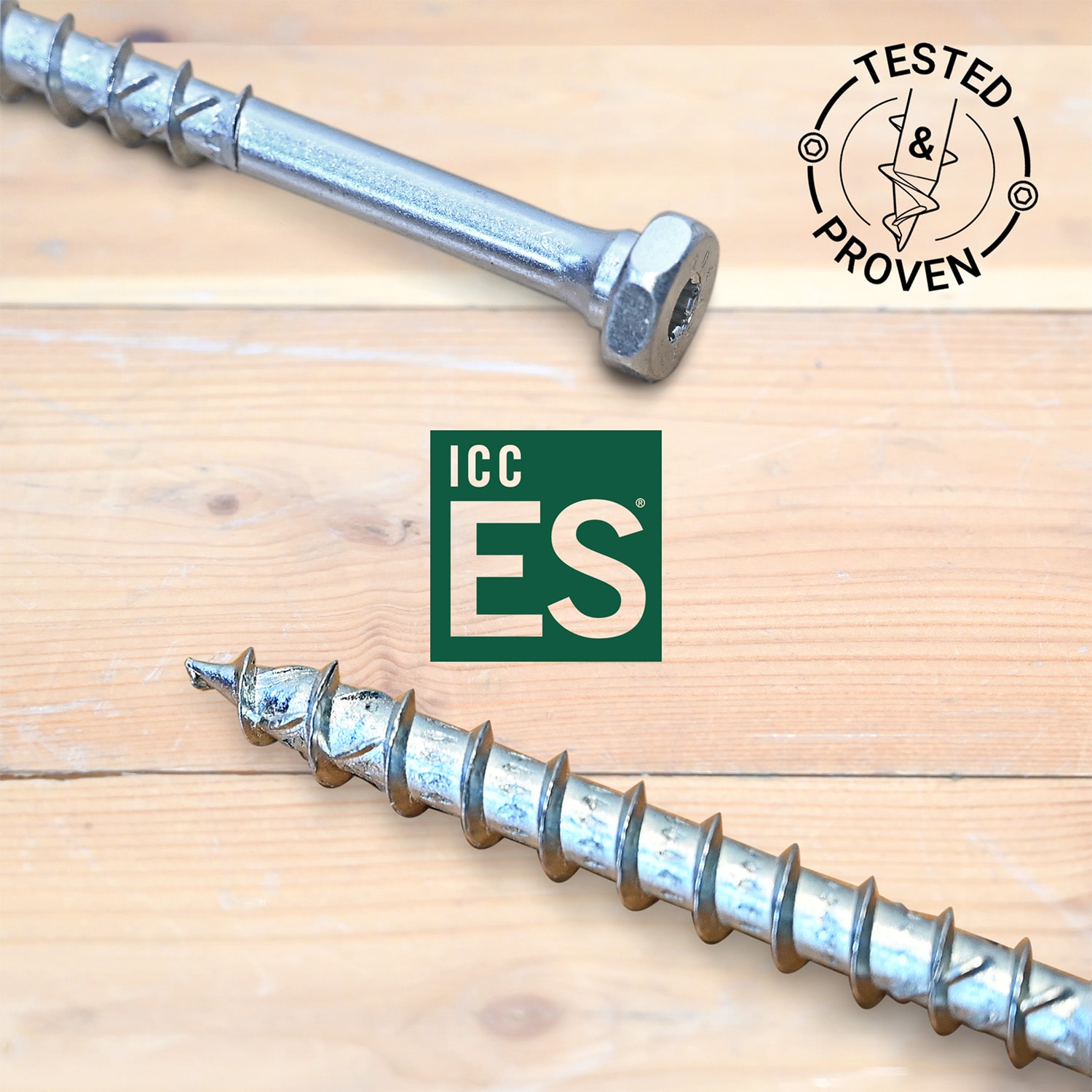

Hex Head

Partially Threaded

Shank Cutter

Reamer Tip

Product Description

Product Description

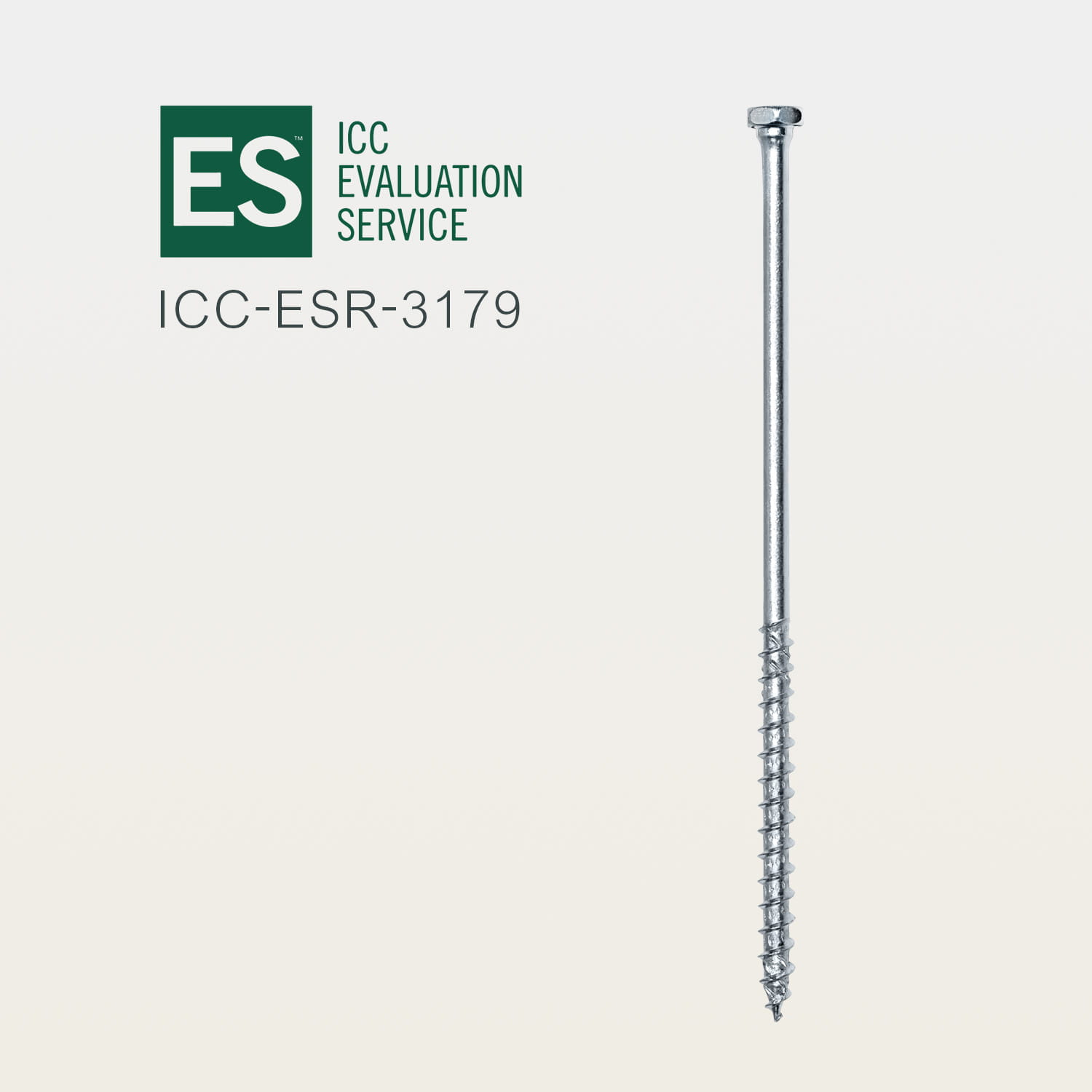

The ASSY Kombi 4.0 are partially threaded high performances structural fasteners. They are ICC-ESR [3179] approved fasteners, designed to pull tightly together connection elements in steel-to-wood configuration. Their design offers a precise setting without the need for pre-drilling [may be recommended for long models].

Their blue passivated zinc coating makes them adequate for use in low corrosive environment, such as dry service condition. They participate in LEED BD+C 2.0 certification [MRc 4.1 & 4.2, 2 points possible] thanks to the percentage of post-consumer recycled steel used to manufacture them.



Features

Diameters1/4″ (6 mm), 5/16″ (8 mm), 3/8″ (10 mm)
Lengths2-3/8″ (60 mm)  to  15-3/4” (400 mm)
  • Partially threaded structural fasteners 4.0
  • Installed with RW Bits or Magnetic Socket
  • Regular hex head
  • Designed for high-performance steel-to-wood connection
  • Blue passivated zinc coating
  • Reamer tip providing the fastest fastener wood bite & installation
  • Equipped with a shank cutter reducing the installation torque needed
  • LEED certification letter available upon request



Specifications

Specifications

SpecificationASSY Kombi PTThread LengthDrive BitPackaging Qty.
# ItemMaterialHead Typein.mmin.mm
[4] KPT0860Hardened SteelHexagonal Head5/16" x 2 3/8"8 x 601 1/2"40RW 4075
[4] KPT0880Hardened SteelHexagonal Head5/16" x 3 1/8"8 x 802"50RW 4075
[4] KPT08100Hardened SteelHexagonal Head5/16" x 4"8 x 1002 3/8"60RW 4075
[4] KPT08120Hardened SteelHexagonal Head5/16" x 4 3/4"8 x 1203 1/8"80RW 4075
[4] KPT08140Hardened SteelHexagonal Head5/16" x 5 1/2"8 x 1403 1/8"80RW 4075
[4] KPT08160Hardened SteelHexagonal Head5/16" x 6 1/4"8 x 1603 1/8"80RW 4075
[4] KPT08180Hardened SteelHexagonal Head5/16" x 7 1/8"8 x 1803 1/8"80RW 4075
[4] KPT08200Hardened SteelHexagonal Head5/16" x 7 7/8"8 x 2003 1/8"80RW 4075
[4] KPT08220Hardened SteelHexagonal Head5/16" x 8 5/8"8 x 2204"100RW 4075
[4] KPT08240Hardened SteelHexagonal Head5/16" x 9 1/2"8 x 2404"100RW 4075
[4] KPT08260Hardened SteelHexagonal Head5/16" x 10 1/4"8 x 2604"100RW 4075
[4] KPT08280Hardened SteelHexagonal Head5/16" x 11"8 x 2804"100RW 4075
[4] KPT08300Hardened SteelHexagonal Head5/16" x 11 7/8"8 x 3004"100RW 4075
[4] KPT1060Hardened SteelHexagonal Head3/8" x 2 3/8"10 x 602"50RW 4050
[4] KPT1080Hardened SteelHexagonal Head3/8" x 3 1/8"10 x 802"50RW 4050
[4] KPT10100Hardened SteelHexagonal Head3/8" x 4"10 x 1002 3/8"60RW 4050
[4] KPT10120Hardened SteelHexagonal Head3/8" x 4 3/4"10 x 1203 1/8"80RW 4050
[4] KPT10140Hardened SteelHexagonal Head3/8" x 5 1/2"10 x 1403 1/8"80RW 4050
[4] KPT10160Hardened SteelHexagonal Head3/8" x 6 1/4"10 x 1604"100RW 4050
[4] KPT10180Hardened SteelHexagonal Head3/8" x 7 1/8"10 x 1804"100RW 4050
[4] KPT10200Hardened SteelHexagonal Head3/8" x 7 7/8"10 x 2004"100RW 4050
[4] KPT10220Hardened SteelHexagonal Head3/8" x 8 5/8"10 x 2204"100RW 4050
[4] KPT10240Hardened SteelHexagonal Head3/8" x 9 1/2"10 x 2404"100RW 4050
[4] KPT10260Hardened SteelHexagonal Head3/8" x 10 1/4"10 x 2604"100RW 4050
[4] KPT10280Hardened SteelHexagonal Head3/8" x 11"10 x 2804"100RW 4050
[4] KPT10300Hardened SteelHexagonal Head3/8" x 11 7/8"10 x 3004"100RW 4050
[4] KPT10320Hardened SteelHexagonal Head3/8" x 12 5/8"10 x 3204 3/4"120RW 4050
[4] KPT10340Hardened SteelHexagonal Head3/8" x 13 3/8"10 x 3404 3/4"120RW 4050
[4] KPT10360Hardened SteelHexagonal Head3/8" x 14 1/4"10 x 3604 3/4"120RW 4050
[4] KPT10380Hardened SteelHexagonal Head3/8" x 15"10 x 3804 3/4"120RW 4050
[4] KPT10400Hardened SteelHexagonal Head3/8" x 15 3/4"10 x 4004 3/4"120RW 4050
Design Guides

Design Guides

Structural Screw Catalog

A catalog with all information on our ICC & CCMC code-approved fasteners, including dimensions, references & design properties.

Code Approvals

Code Approvals

ICC Code Approval ESR-3179 for Partially Threaded Fasteners - 2022 Edition (October)

ISO 50001 Certification for ASSY Fasteners
