Pre-engineered Connection System
  • Code Approval
  • ETA
  • Connection Type
  • Wood/Wood
  • Applications
  • Pre-manufactured stick frame walls, SIP panel, Heavy timber stair construction
  • Manufacturer

Request A Quote Tech. Support


Drop-in Installation

Fully Concealable

Product Description

Product Description

The Walco is a pre-engineered beam hanger system manufactured from mild steel with a screwed collar bolt.


  • Pre-installation possibilities
  • Simple installation
  • Fully concealable

Simple installation is possible with structural screws perpendicular to the plate.  The beam hanger can be installed fully concealed or visible with only 1-1/2″ [35 mm] of travel required to engage the connector.

CAD Drawings

CAD Drawings

ProductFile Extension
Design Guides

Design Guides

Walco Canadian Design Guide

Detailed design and installation instructions for fully concealed WALCO pre-engineered connection systems in Canada.

Installation Instructions

Installation Instructions

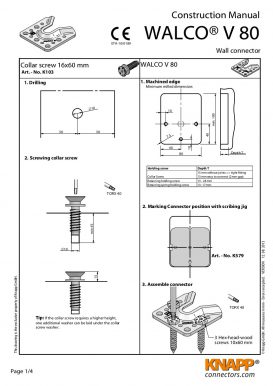

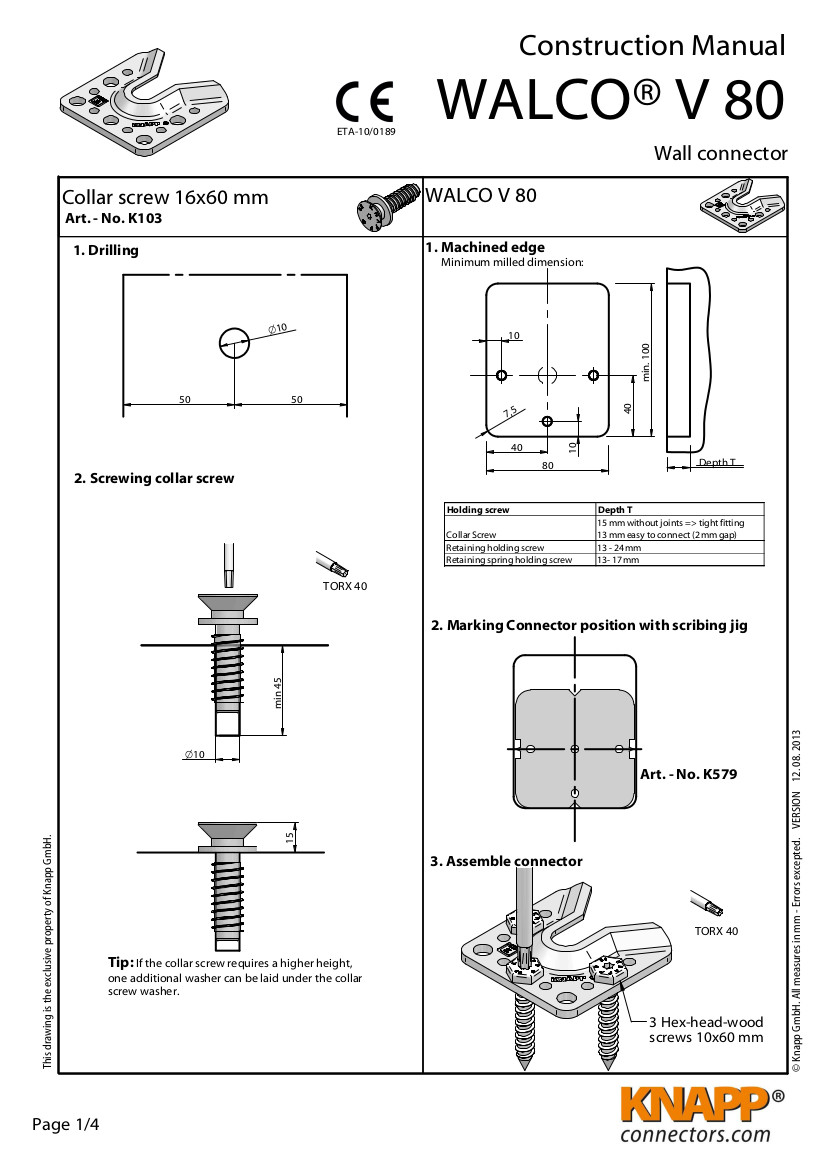

WALCO V80 Installation Guide

The WALCO V80 installation guide is a practical document designed to simplify the installation process of WALCO Beam Hangers.

White Papers

White Papers

Installation Requirements of The Beam Hanger Systems
