ASSY SK 3.0

Hexagonal Head Partially Threaded Structural Wood Screws, 3.0
  • Code Approval
  • ICC, CCMC, ETA
  • Connection Type
  • Wood/Wood , Wood/Steel
  • Applications
  • Timber Framing, Log Home Building, Mass & Heavy Timber Construction
  • Manufacturer
  • SWG

Request A Quote Tech. Support

Washer Head

Shank Cutter

Partially Threaded

Counter Thread Tip

Product Description

Product Description

The ASSY SK 3.0 are partially threaded high performances structural fasteners. They are ICC-ESR [3179] & CCMC approved fasteners, designed to pull tightly together connection elements and are recommended when head pull-through is the governing consideration.

Their design offers a precise setting without the need for pre-drilling [may be recommended for long models]. Their blue passivated zinc coating makes them adequate for use in low corrosive environments, such as dry service condition. They participate in LEED BD+C 2.0 certification [MRc 4.1 & 4.2, 2 points possible] thanks to the percentage of post-consumer recycled steel used to manufacture them.



Features

Diameters1/4″ (6 mm) , 5/16″ (8 mm) , 3/8″ (10 mm) , 1/2″ (12 mm)
Lengths1-3/4″ (50 mm)   to  20-1/2″ (520 mm)
  • Partially threaded structural fasteners 3.0
  • Installed with AW Bits
  • Large washer head
  • Provides tremendous head pull-through capacity
  • Ideal for wood-to-wood & steel-to-wood connections
  • Blue passivated zinc coating
  • Counter thread tip providing the fastest fastener wood bite & installation
  • Equipped with a shank cutter reducing the installation torque needed
  • LEED certification letter available upon request



Specifications

Specifications


SpecificationASSY SKThread LengthDrive BitPackaging Qty.
# ItemMaterialHead Typein.mmin.mm
[3] SK0650Hardened SteelWasher Head1/4" x 2"6 x 501 3/4"45RW 30100
[3] SK0660Hardened SteelWasher Head1/4" x 2 3/8"6 x 601 1/2"37RW 30100
[3] SK0670Hardened SteelWasher Head1/4" x 2 3/4"6 x 701 5/8"42RW 30100
[3] SK0680Hardened SteelWasher Head1/4" x 3 1/8"6 x 802"50RW 30100
[3] SK0690Hardened SteelWasher Head1/4" x 3 1/2"6 x 902"50RW 30100
[3] SK06100Hardened SteelWasher Head1/4" x 4"6 x 1002 3/8"60RW 30100
[3] SK06120Hardened SteelWasher Head1/4" x 4 3/4"6 x 1202 3/4"70RW 30100
[3] SK06140Hardened SteelWasher Head1/4" x 5 1/2"6 x 1402 3/4"70RW 30100
[3] SK06160Hardened SteelWasher Head1/4" x 6 1/4"6 x 1602 3/4"70RW 30100
[3] SK06180Hardened SteelWasher Head1/4" x 7 1/8"6 x 1802 3/4"70RW 30100
[3] SK06200Hardened SteelWasher Head1/4" x 7 7/8"6 x 2002 3/4"70RW 30100
[3] SK06220Hardened SteelWasher Head1/4" x 8 5/8"6 x 2202 3/4"70RW 30100
[3] SK06240Hardened SteelWasher Head1/4" x 9 1/2"6 x 2402 3/4"70RW 30100
[3] SK06260Hardened SteelWasher Head1/4" x 10 1/4"6 x 2602 3/4"70RW 30100
[3] SK06280Hardened SteelWasher Head1/4" x 11"6 x 2802 3/4"70RW 30100
[3] SK06300Hardened SteelWasher Head1/4" x 11 7/8"6 x 3002 3/4"70RW 30100
[3] SK0860Hardened SteelWasher Head5/16" x 2 3/8"8 x 602"50RW 4050
[3] SK0880Hardened SteelWasher Head5/16" x 3 1/8"8 x 802"50RW 4050
[3] SK08100Hardened SteelWasher Head5/16" x 4"8 x 1002 3/8"60RW 4050
[3] SK08120Hardened SteelWasher Head5/16" x 4 3/4"8 x 1203 1/8"80RW 4050
[3] SK08140Hardened SteelWasher Head5/16" x 5 1/2"8 x 1403 1/8"80RW 4050
[3] SK08160Hardened SteelWasher Head5/16" x 6 1/4"8 x 1603 1/8"80RW 4050
[3] SK08180Hardened SteelWasher Head5/16" x 7 1/8"8 x 1803 1/8"80RW 4050
[3] SK08200Hardened SteelWasher Head5/16" x 7 7/8"8 x 2003 1/8"80RW 4050
[3] SK08220Hardened SteelWasher Head5/16" x 8 5/8"8 x 2204"100RW 4050
[3] SK08240Hardened SteelWasher Head5/16" x 9 1/2"8 x 2404"100RW 4050
[3] SK08260Hardened SteelWasher Head5/16" x 10 1/4"8 x 2604"100RW 4050
[3] SK08280Hardened SteelWasher Head5/16" x 11"8 x 2804"100RW 4050
[3] SK08300Hardened SteelWasher Head5/16" x 11 7/8"8 x 3004"100RW 4050
[3] SK08320Hardened SteelWasher Head5/16" x 12 5/8"8 x 3204"100RW 4050
[3] SK08340Hardened SteelWasher Head5/16" x 13 3/8"8 x 3404"100RW 4050
[3] SK08360Hardened SteelWasher Head5/16" x 14 1/4"8 x 3604"100RW 4050
[3] SK08380Hardened SteelWasher Head5/16" x 15"8 x 3804"100RW 4050
[3] SK08400Hardened SteelWasher Head5/16" x 15 3/4"8 x 4004"100RW 4050
[3] SK08420Hardened SteelWasher Head5/16" x 16 1/2"8 x 4204"100RW 4050
[3] SK08440Hardened SteelWasher Head5/16" x 17 1/4"8 x 4404"100RW 4050
[3] SK08480Hardened SteelWasher Head5/16" x 19"8 x 4804"100RW 4025
[3] SK08520Hardened SteelWasher Head5/16" x 20 1/2"8 x 5204"100RW 4025
[3] SK10100Hardened SteelWasher Head3/8" x 4"10 x 1002 3/8"60RW 5050
[3] SK10120Hardened SteelWasher Head3/8" x 4 3/4"10 x 1203 1/8"80RW 5050
[3] SK10140Hardened SteelWasher Head3/8" x 5 1/2"10 x 1403 1/8"80RW 5050
[3] SK10160Hardened SteelWasher Head3/8" x 6 1/4"10 x 1604"100RW 5050
[3] SK10180Hardened SteelWasher Head3/8" x 7 1/8"10 x 1804"100RW 5050
[3] SK10200Hardened SteelWasher Head3/8" x 7 7/8"10 x 2004"100RW 5050
[3] SK10220Hardened SteelWasher Head3/8" x 8 5/8"10 x 2204"100RW 5050
[3] SK10240Hardened SteelWasher Head3/8" x 9 1/2"10 x 2404"100RW 5050
[3] SK10260Hardened SteelWasher Head3/8" x 10 1/4"10 x 2604"100RW 5050
[3] SK10280Hardened SteelWasher Head3/8" x 11"10 x 2804"100RW 5050
[3] SK10300Hardened SteelWasher Head3/8" x 11 7/8"10 x 3004"100RW 5050
[3] SK10320Hardened SteelWasher Head3/8" x 12 5/8"10 x 3204 3/4"120RW 5050
[3] SK10340Hardened SteelWasher Head3/8" x 13 3/8"10 x 3404 3/4"120RW 5050
[3] SK10360Hardened SteelWasher Head3/8" x 14 1/4"10 x 3604 3/4"120RW 5050
[3] SK10380Hardened SteelWasher Head3/8" x 15"10 x 3804 3/4"120RW 5050
[3] SK10400Hardened SteelWasher Head3/8" x 15 3/4"10 x 4004 3/4"120RW 5050
[3] SK10460Hardened SteelWasher Head3/8" x 18 1/8"10 x 4604 3/4"120RW 5025
[3] SK12200Hardened SteelWasher Head1/2" x 7 7/8"12 x 2004"100RW 5025
[3] SK12240Hardened SteelWasher Head1/2" x 9 1/2"12 x 2404 3/4"120RW 5025
[3] SK12260Hardened SteelWasher Head1/2" x 10 1/4"12 x 2604 3/4"120RW 5025
[3] SK12300Hardened SteelWasher Head1/2" x 11 7/8"12 x 3004 3/4"120RW 5025
[3] SK12400Hardened SteelWasher Head1/2" x 15 3/4"12 x 4005 3/4"145RW 5025
[3] SK12480Hardened SteelWasher Head1/2" x 19"12 x 4805 3/4"145RW 5025
[3] SK12520Hardened SteelWasher Head1/2" x 20 1/2"12 x 5205 3/4"145RW 5025

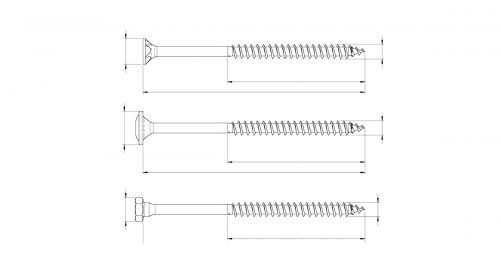

CAD Drawings

CAD Drawings

ProductASSY SK DiameterFile Extension
in.mm..DXF
ASSY SK1/4"6
ASSY SK5/16"8
ASSY SK3/8"10
ASSY SK1/2"12
ALL ABOVE
Design Guides

Design Guides

Structural Screw Catalog

A catalog with all information on our ICC & CCMC code-approved fasteners, including dimensions, references & design properties.

Structural Screw Connection Design Guide

Companion to the Structural Screws Catalog, it provides easy-to-read tables for the most common mass timber connections with design values & installation instructions.

Code Approvals

Code Approvals

ICC Code Approval ESR-3179 for Partially Threaded Fasteners - 2022 Edition (October)

CCMC Code Approval 13677-R

ISO 50001 Certification for ASSY Fasteners

LA Research Report (LARR): RR 26073

Installation Instructions

Installation Instructions

Structural Fasteners Installation Guide

The structural fasteners installation guide is a practical document designed to simplify the installation process of ASSY self-tapping screws.

White Papers

White Papers

Structural Insulated Panel (SIP) Installation Design

Structural Screw Technology in Tall Wood Buildings

ASSY Screws vs. Lag Bolt

Timber Moisture Content Changes and Associated Stress Predictions on Structural Wood Screws

Substitution of Lag Screws with Wood Screws

CLT Special Provisions

Designing Timber Concrete Composite Systems (TCC) with ASSY Self-Tapping Screws

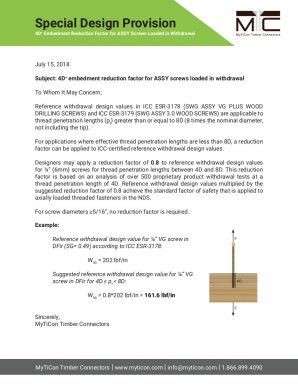

4D+ Embedment Reduction Factor for Screws Loaded in Withdrawal
