ASSY FWH 3.0

Flat Washer Head Partially Threaded Structural Wood Screws, 3.0
  • Code Approval
  • ICC, ETA
  • Connection Type
  • Wood/Wood
  • Applications
  • Timber Framing, Log Home Building, Mass & Heavy Timber Construction
  • Manufacturer
  • SWG

Request A Quote Tech. Support

Flat Washer Head

Shank Cutter

Partially Threaded

Counter Thread Tip

Product Description

Product Description

The ASSY FWH 3.0 are partially threaded high performances structural fasteners. They are ICC-ESR [3179] approved fasteners, designed to pull tightly together connection elements.



They are two-in-one engineered screw that combines the pulling power of a washer-head screw with the clean finish of a countersunk head screw. Their design offers a precise setting without the need for pre-drilling [may be recommended for long models].


Their blue passivated zinc coating makes them adequate for use in low corrosive environment, such as dry service condition. They participate in LEED BD+C 2.0 certification [MRc 4.1 & 4.2, 2 points possible] thanks to the percentage of post-consumer recycled steel used to manufacture them.



Features

Diameter5/16″ (8 mm)
Lengths6-1/4″ (160 mm) to  15-3/4” (400 mm)
  • Partially threaded structural fasteners 3.0
  • Installed with AW Bits
  • Flat washer head for a clean architectural finish
  • Ideal for wood-to-wood connections
  • Blue passivated zinc coating
  • Counter thread tip providing a fast fastener wood bite & installation
  • Equipped with a shank cutter reducing the installation torque needed
  • LEED certification letter available upon request



Specifications

Specifications

SpecificationASSY F.W.H.Thread LengthDrive BitPackaging Qty.
# ItemMaterialHead Typein.mmin.mm
[3] FWH08100Hardened SteelFlat Washer Head5/16" x 4"8 x 1003 1/8"80RW 4050
[3] FWH08160Hardened SteelFlat Washer Head5/16" x 6 1/4"8 x 1603 1/8"80RW 4050
[3] FWH08200Hardened SteelFlat Washer Head5/16" x 7 7/8"8 x 2003 1/8"80RW 4050
[3] FWH08240Hardened SteelFlat Washer Head5/16" x 9 1/2"8 x 2404"100RW 4050
[3] FWH08300Hardened SteelFlat Washer Head5/16" x 11 7/8"8 x 3004"100RW 4050
[3] FWH08360Hardened SteelFlat Washer Head5/16" x 14 1/4"8 x 3604"100RW 4050
[3] FWH08400Hardened SteelFlat Washer Head5/16" x 15 3/4"8 x 4004"100RW 4050
CAD Drawings

CAD Drawings

ProductASSY FWH DiameterFile Extension
in.mm..DXF
ASSY FWH5/16"8
Design Guides

Design Guides

Structural Screw Catalog

A catalog with all information on our ICC & CCMC code-approved fasteners, including dimensions, references & design properties.

Structural Screw Connection Design Guide

Companion to the Structural Screws Catalog, it provides easy-to-read tables for the most common mass timber connections with design values & installation instructions.

Code Approvals

Code Approvals

ICC Code Approval ESR-3179 for Partially Threaded Fasteners - 2021 Edition (August)

CCMC Code Approval 13677-R

ISO 50001 Certification for ASSY Fasteners

LA Research Report (LARR): RR 26073

Installation Instructions

Installation Instructions

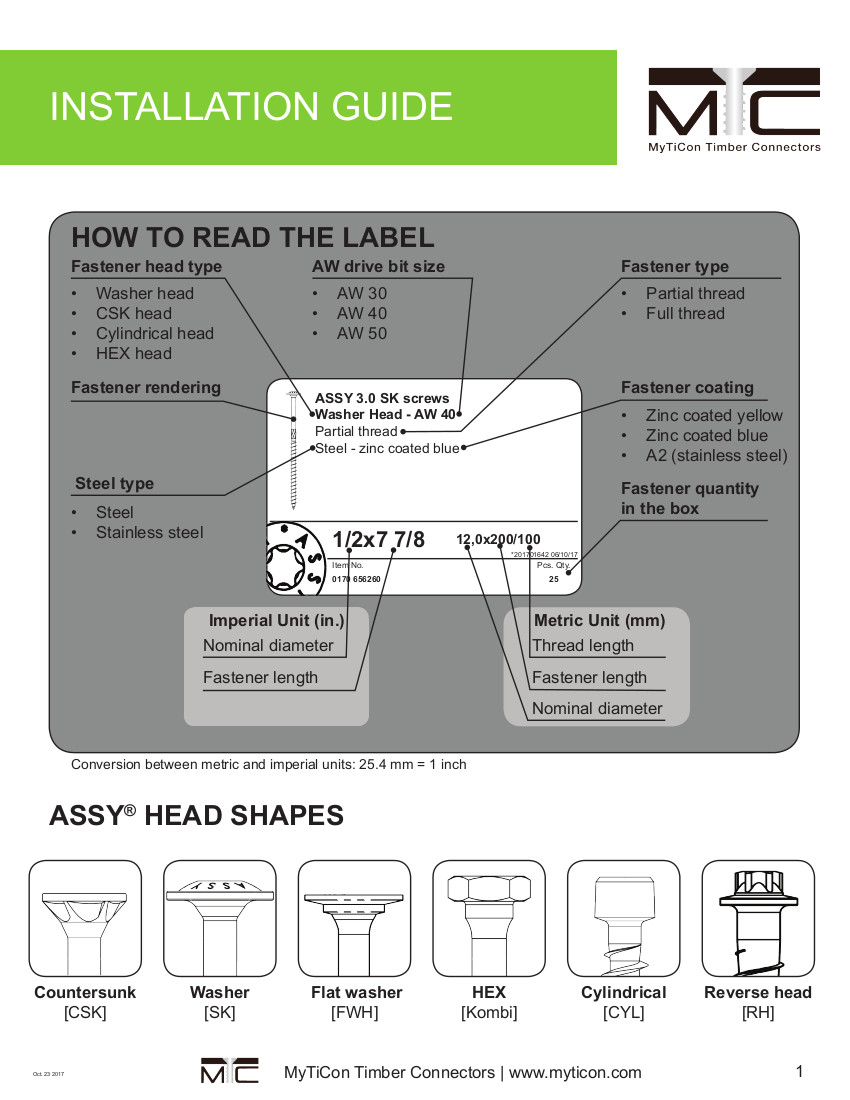

Structural Fasteners Installation Guide

The structural fasteners installation guide is a practical document designed to simplify the installation process of ASSY self-tapping screws.

White Papers

White Papers

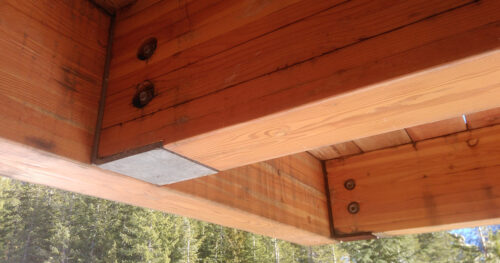

Timber Moisture Content Changes and Associated Stress Predictions on Structural Wood Screws

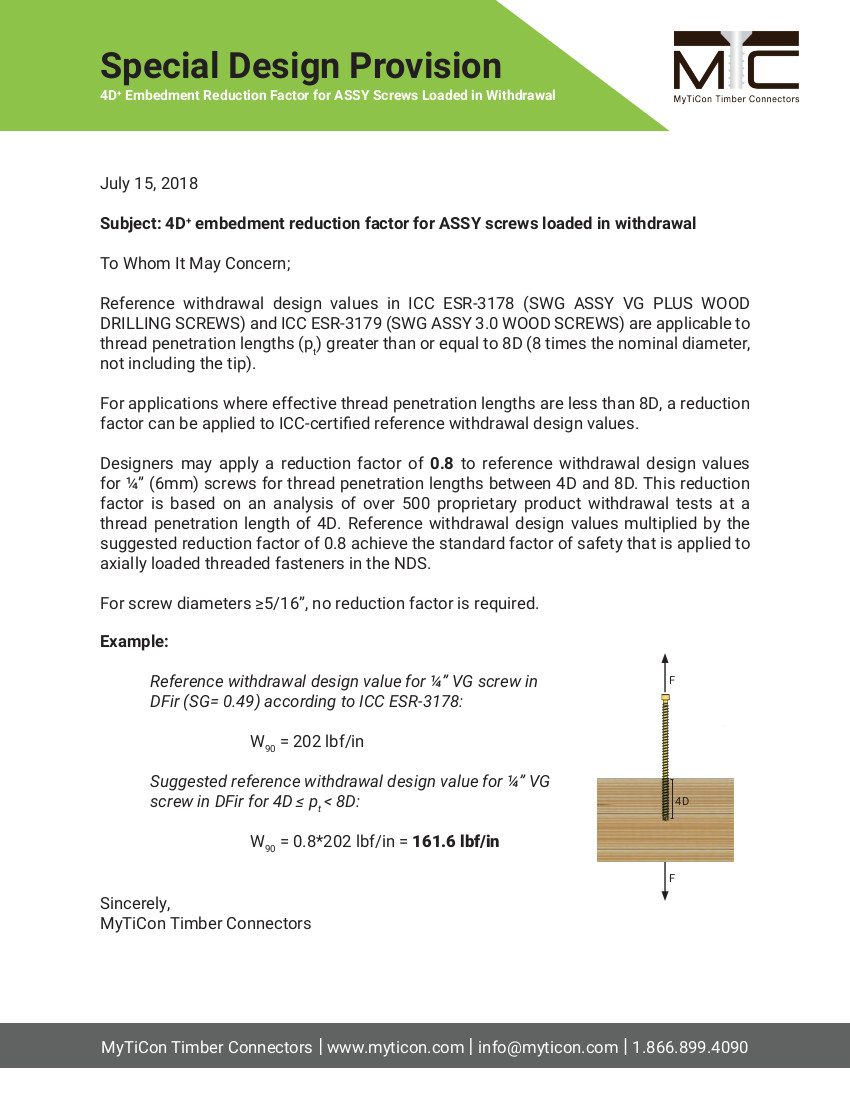

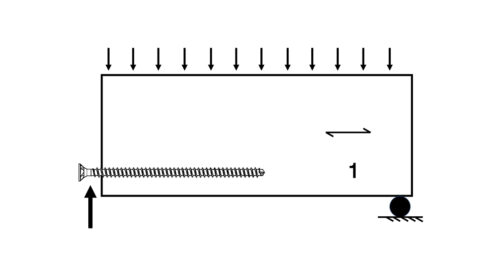

4D+ Embedment Reduction Factor for Screws Loaded in Withdrawal
