ASSY A2 SK

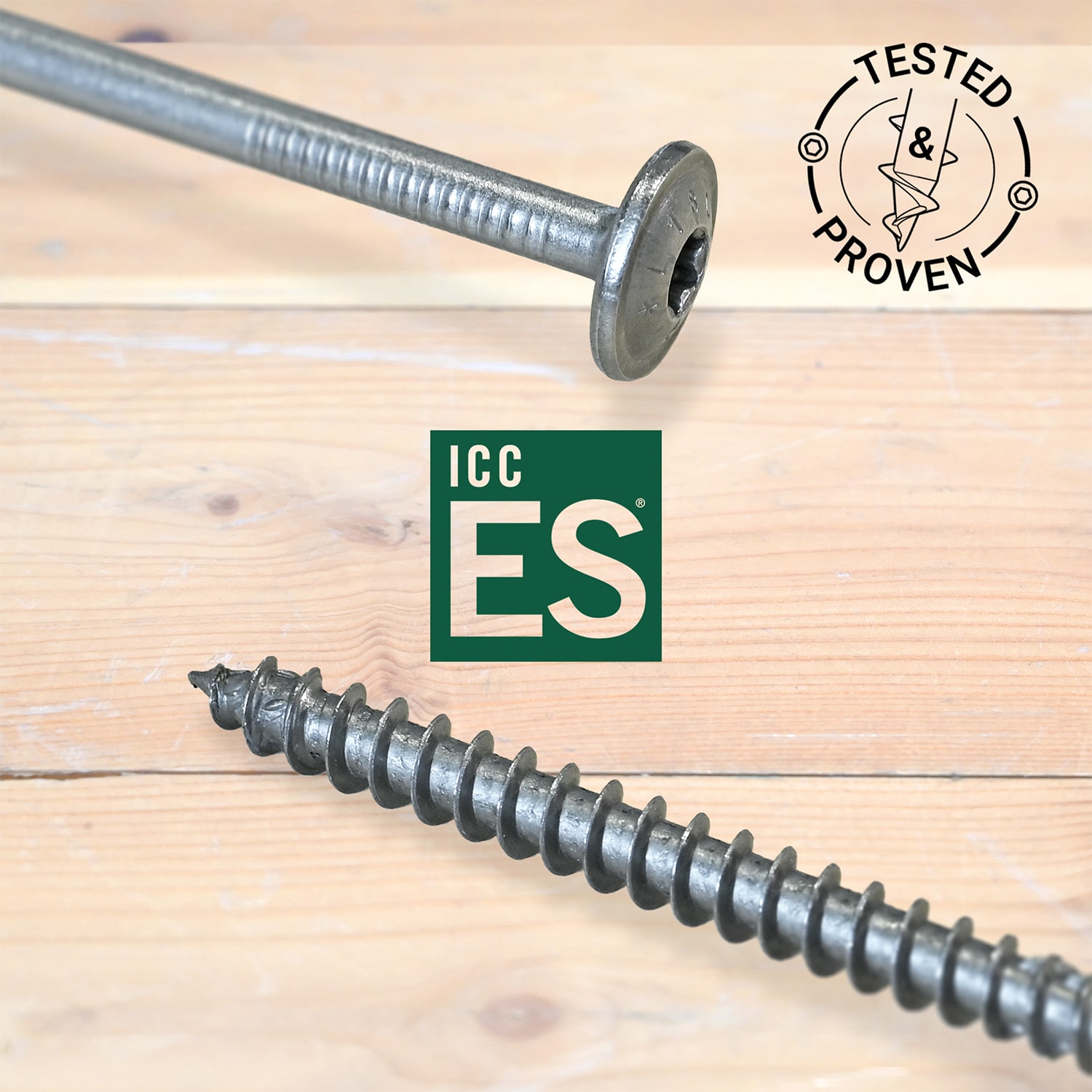

Washer Head, Stainless Steel Self-Tapping Wood Screw
  • Code Approval
  • ICC, ETA
  • Connection Type
  • Wood/Wood
  • Applications
  • Timber Framing, Log Home Building,
    Mass & Heavy Timber Construction

Request a Quote Tech. Support

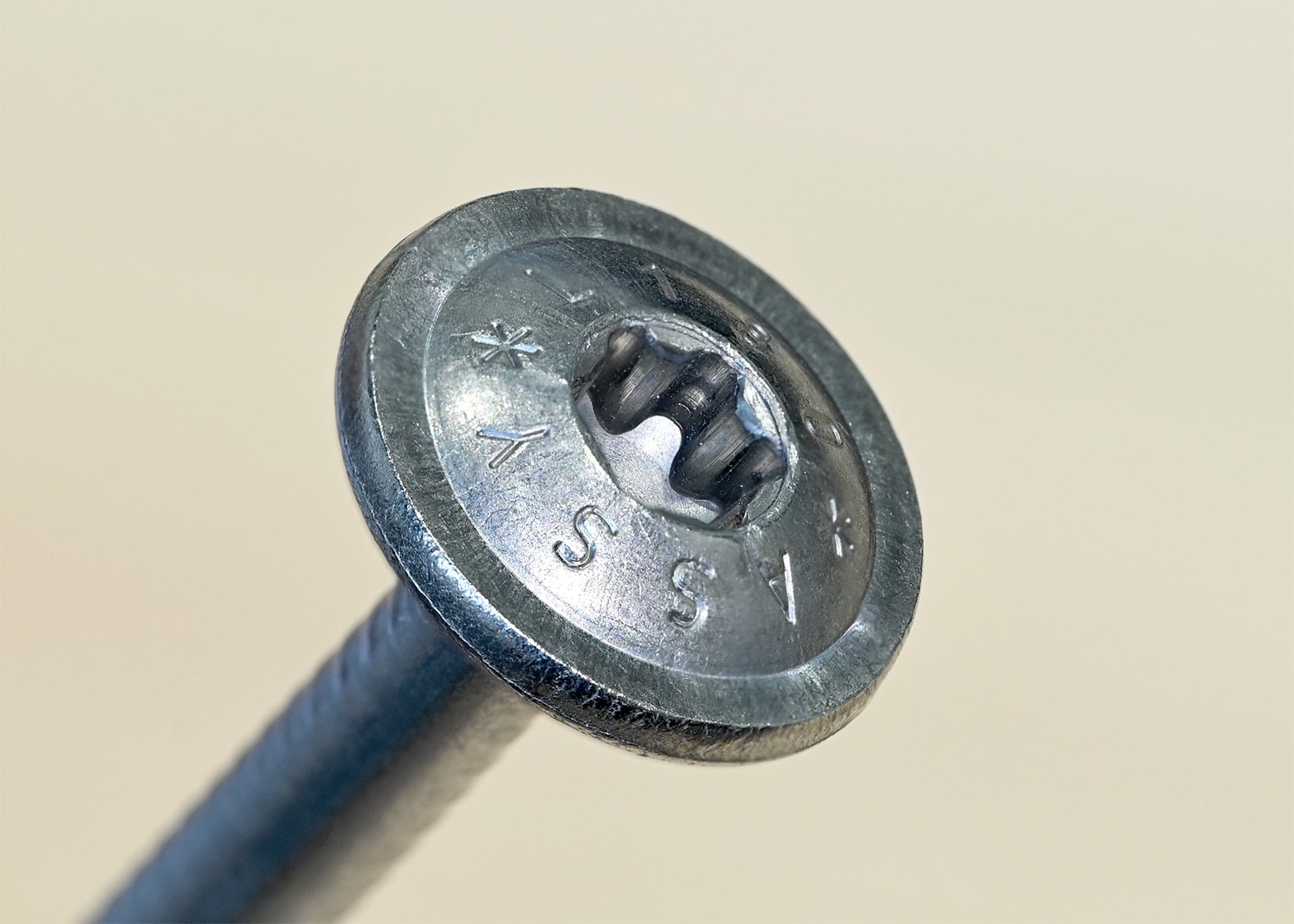

Washer Head

Ring Thread Tip

Suitable in Wet Service Conditions

Outdoor

Product Description

Product Description

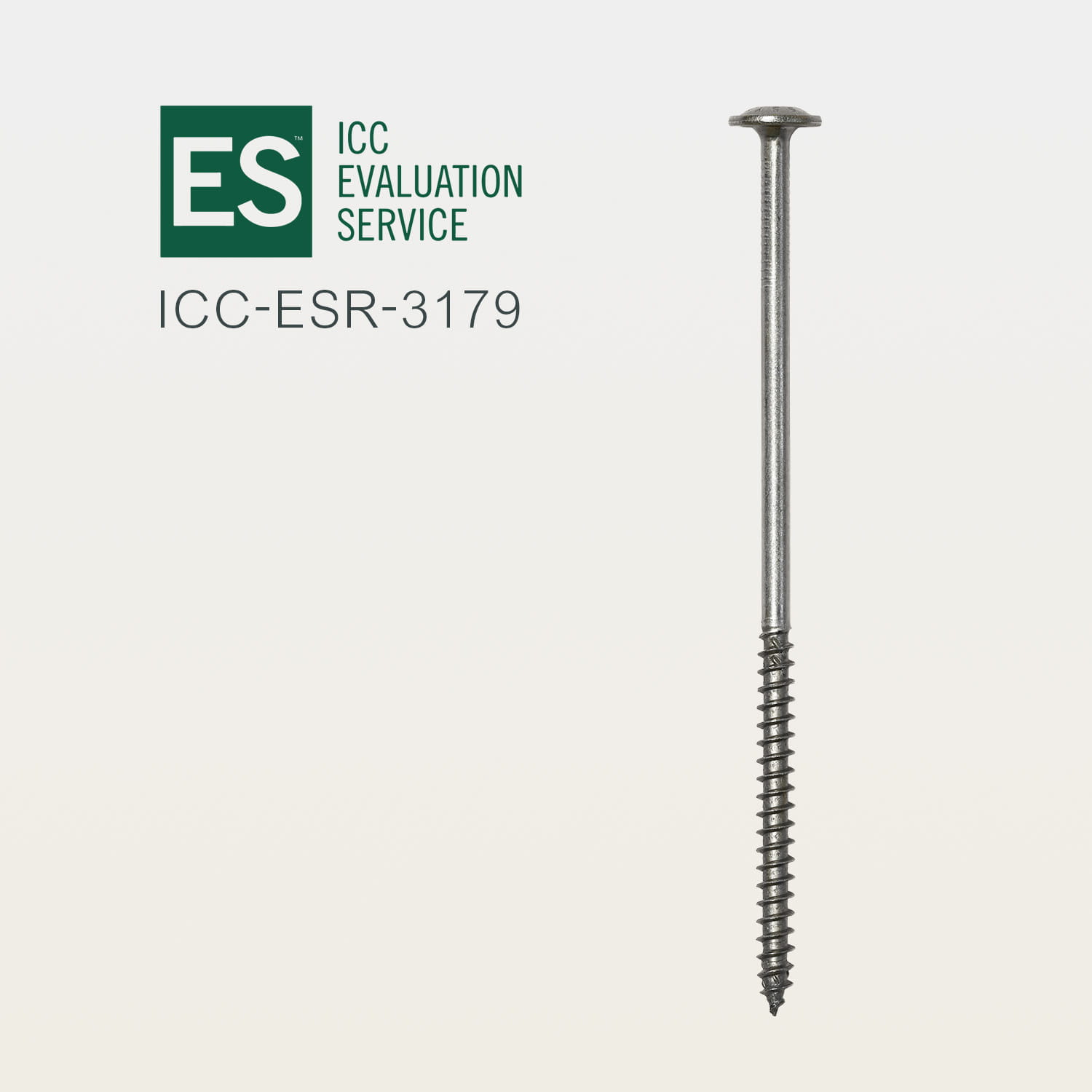

The A2 Stainless Steel SK are high corrosion resistant structural fasteners suitable for use in wet service conditions & corrosive environments. These ICC-ESR approved fasteners are designed for high-performance outdoor steel to wood applications. They offer a precise setting without the need for pre-drilling [may be recommended for long models].

Made from chromium-nickel austenitic stainless steel (corrosion resistant) with low carbon content and copper addition. Considered to be equivalent to 304 stainless steel.

Features

Diameters 1/4″ (6 mm),  5/16″ (8 mm)
Lengths 3-1/8” (80 mm)  to  14-1/4” (360 mm)
  • Washer head fastener with the highest head pull-through capacity
  • 304 stainless steel equivalents
  • Suitable in corrosive environments
  • Suitable for use in wet service conditions
  • Aggressive ring thread tip providing the fastest fastener wood bite & installation
  • Installed with AW Bits



RRequest a Quote

TTech. Support

Specifications

Specifications

SpecificationASSY A2 SKThread LengthDrive BitPackaging Qty.
# ItemMaterialHead Typein.mmin.mm
A2SK0680Stainless SteelWasher Head1/4 x 3-1/86 x 80250AW 30100
A2SK0690Stainless SteelWasher Head1/4 x 3-1/26 x 90250AW 30100
A2SK06100Stainless SteelWasher Head1/4 x 46 x 1002 3/860AW 30100
A2SK06120Stainless SteelWasher Head1/4 x 4-3/46 x 1202 3/470AW 30100
A2SK06140Stainless SteelWasher Head1/4 x 5-1/26 x 1402 3/470AW 30100
A2SK0880Stainless SteelWasher Head5/16 x 3-1/88 x 80250AW 4050
A2SK08100Stainless SteelWasher Head5/16 x 48 x 100250AW 4050
A2SK08120Stainless SteelWasher Head5/16 x 4-3/48 x 1203 1/880AW 4050
A2SK08140Stainless SteelWasher Head5/16 x 5-1/28 x 1403 1/880AW 4050
A2SK08160Stainless SteelWasher Head5/16 x 6-1/48 x 1603 1/880AW 4050
A2SK08180Stainless SteelWasher Head5/16 x 7-1/88 x 1803 1/880AW 4050
A2SK08200Stainless SteelWasher Head5/16 x 7-7/88 x 2003 1/880AW 4050
A2SK08220Stainless SteelWasher Head5/16 x 8-5/88 x 2203 1/880AW 4050
A2SK08260Stainless SteelWasher Head5/16 x 10-1/48 x 2604100AW 4050
A2SK08300Stainless SteelWasher Head5/16 x 11-7/88 x 3004100AW 4050
A2SK08360Stainless SteelWasher Head5/16 x 14-1/48 x 3604100AW 4050
CAD Drawings

2D & 3D Geometry

ProductASSY A2 SK Diameter File Extension
in.mm..DXF
ASSY A2 SK 1/46
ASSY A2 SK 5/168
ALL ABOVE
