What is the RIDGE Installation Guide and who is it for?

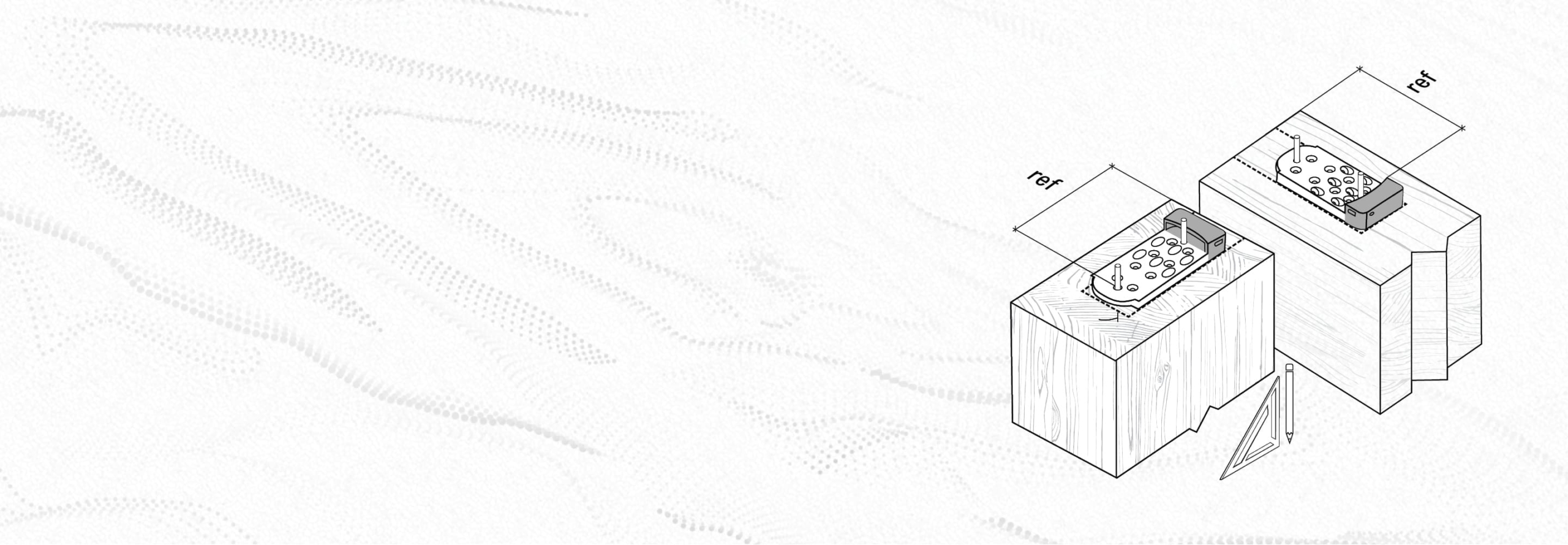

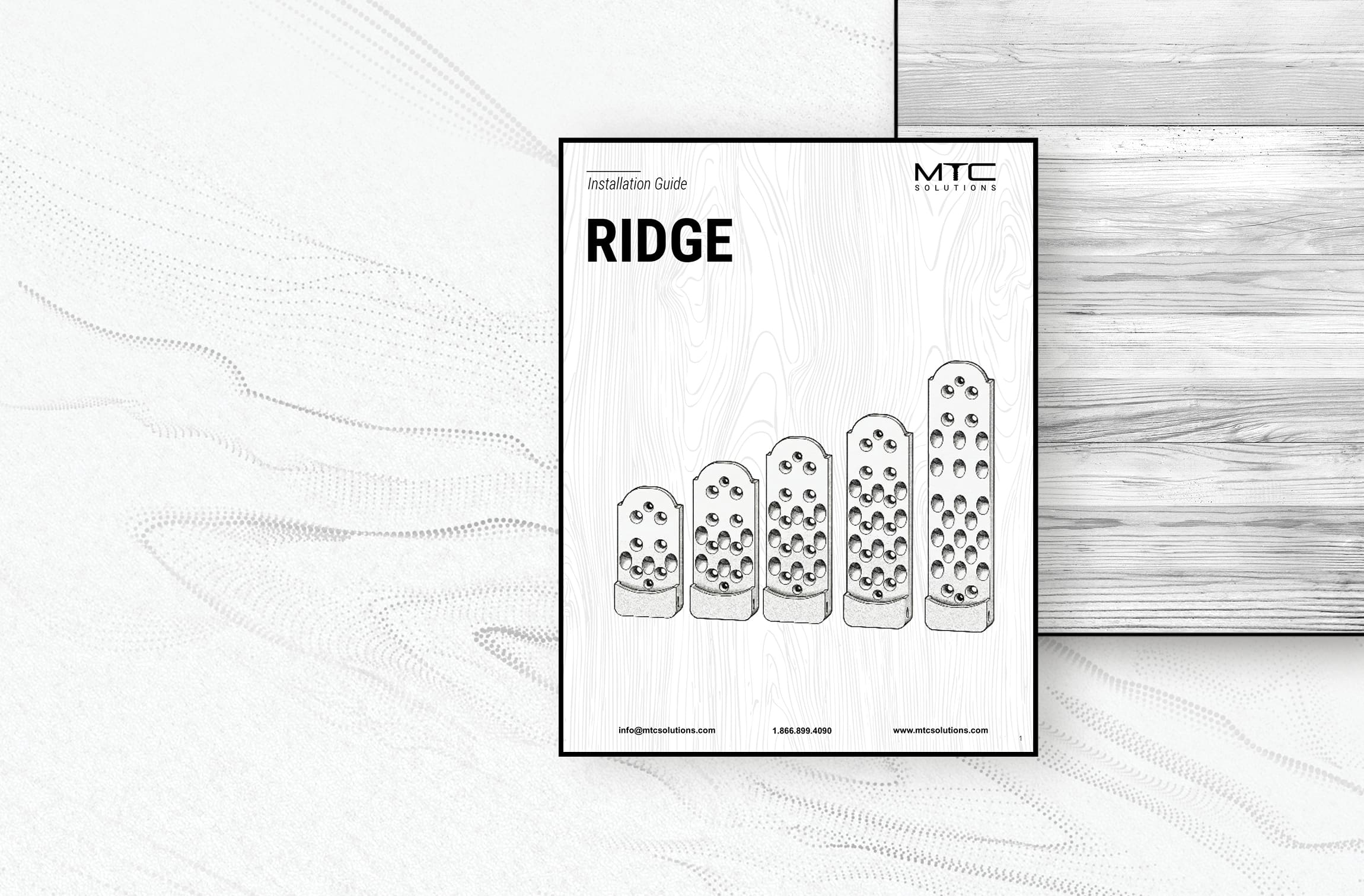

This guide supports field installers, site foremen, and fabrication teams working with MTC Solutions’ RIDGE concealed beam hanger systems. It provides all necessary installation steps, fastener charts, and tool recommendations to complete your install successfully.
The layout is simplified for quick referencing with a black-and-white format – ideal for clipboards and printouts.
What hardware and tools do I need to install RIDGE?
For an accurate installation of RIDGE, MTC recommends:
- A low-RPM, high-torque drill with a feathering trigger for enhanced speed control.
- RW 40 bits for optimal torque transmission.
- The RIDGE pre-drilling jig for accurately located pilot holes.
Want to know more about the pro tools for mass timber? Read our article on the topic.
What hardware comes with RIDGE systems?
Each RIDGE connector set includes all the necessary components for secure installation.
- Two identical aluminum connector plates
- MTC-FTC (ASSY VG CSK) 8 x 120 mm or 8 x 160 mm structural screws for the primary member, depending on the specified fastener package, and 8 × 160 mm structural screws for the secondary member*
- Four 6 x 80 mm [1/4 x 3-1/8 in.] MTC-PTC (ASSY Ecofast) positioning screws
*The quantity of fasteners and estimated installation time may vary depending on the specific RIDGE model. Consult the Design Guide before installation.
How long does RIDGE take to install?
The estimated installation time for one person is 11 to 24 minutes per complete connection, depending on the RIDGE model. This includes layout, positioning, pilot holes, and structural screw installation for both plates. Preparing pilot holes during fabrication can help reduce time on site.
Where is the RIDGE beam hanger manufactured and what materials are used?
RIDGE is manufactured in North America using high-grade aluminum, with production in Canada and the United States to ensure quality and reduced lead times. Additional details about the product’s design and development are available on the .
Where can I find full technical specs and design support?
Need full-capacities, code references, fire design details, or housing guidance? Access the Beam Hanger Design Guide.
Is this guide printable and field-ready?
Yes. Click, download, print, and use.
